Welcome to Shark Pump Engineering Pvt. Ltd.
About Shark Pumps
Shark Pump Engineering Pvt. Ltd., an ISO 9001:2008 certified company from Ahmedabad, manufactures high-performance industrial pumps with a focus on reliability, efficiency, and quality.
Get a Free Inquiry

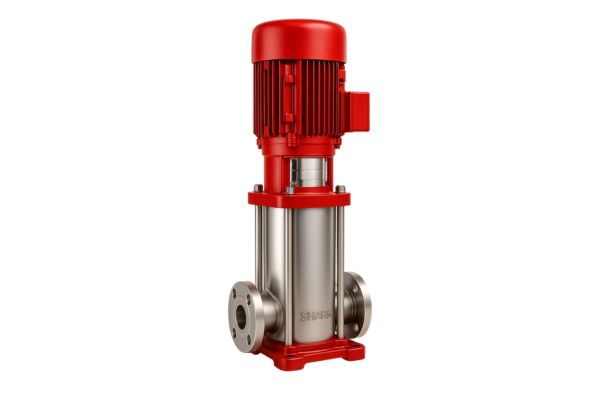

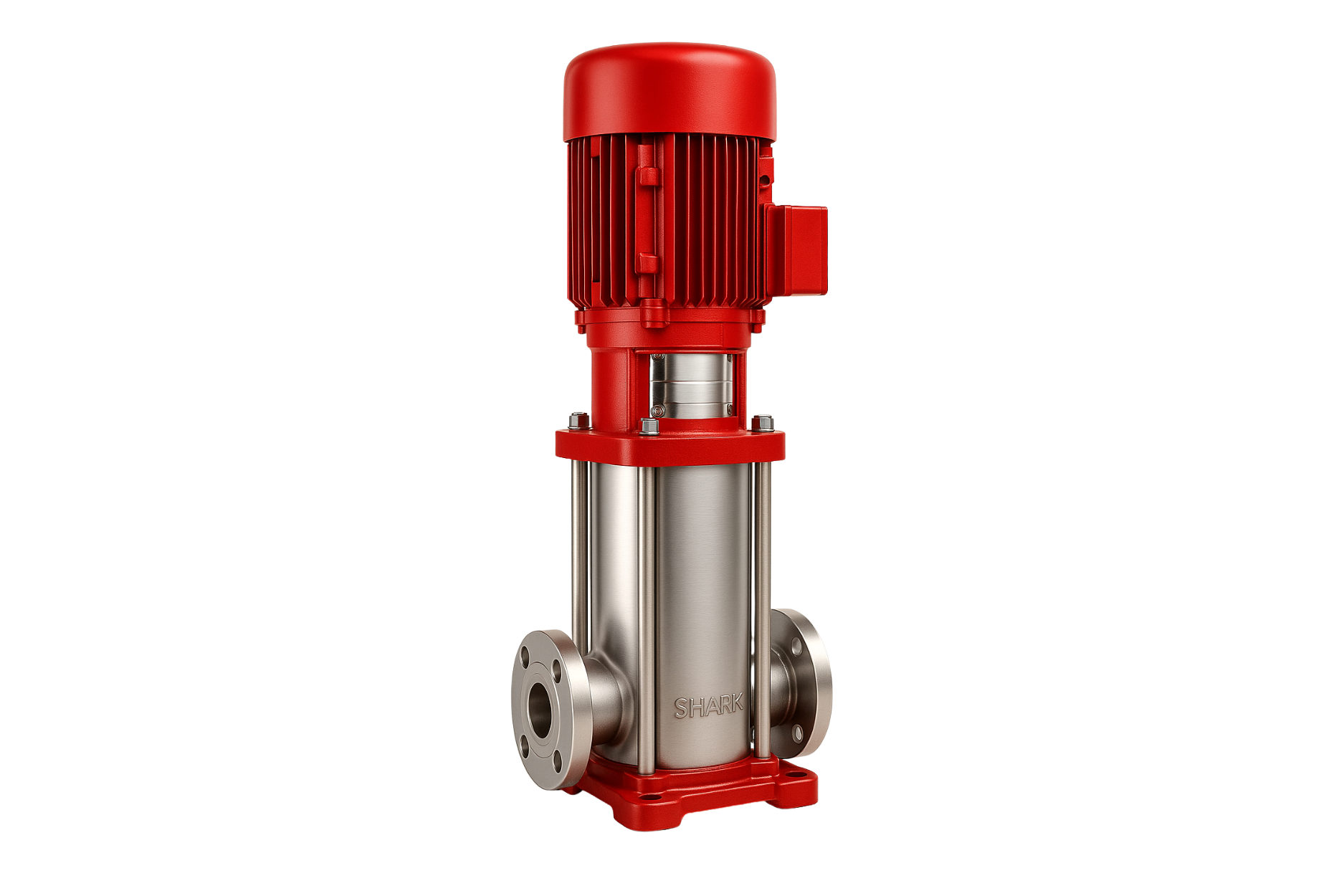

Jockey Pump Sets
About Jockey Pump Sets
Jockey Pump Sets by Shark Pump Engineering Pvt. Ltd. are compact, high-efficiency booster systems for maintaining system pressure in firefighting and water distribution networks. These automatically compensate for small pressure drops, which reduces unnecessary cycling of the main pump and increases overall system life.
Pump Type Options
- › End Suction Pumps with Electric Motor Drive.
- › Vertical Inline Multistage Pumps with Electric Motor.
- › Multistage Single / Multi Outlet Pumps with Electric Motor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Range | Up to 140 m³/hr |
| Head Range | Up to 220 meters |
| Temperature | Up to 120°C |
| Voltage | 415 V |
| Frequency | 50 Hz |
| Enclosure | TEFC / SPDP |
| Drive Type | Electric Motor |
| Pump Type | End Suction / Vertical Inline / Multistage |
Key Features
- › Automatically maintains pressure in the main pipeline.
- › Continuous operation design with high reliability.
- › Compact skid-mounted for easy installation.
- › Low power consumption & minimal maintenance.
- › TEFC / SPDP motor options for safety and durability.
Applications
- › Firefighting systems (pressure maintenance).
- › Booster pump systems for commercial buildings.
- › High-rise water supply networks.
- › HVAC & chilled water circulation systems.
- › Industrial pressure boosting applications.
Advantages
- › Automatic operation for energy efficiency.
- › Reduces frequent cycling of main pumps — extends life.
- › Compact, lightweight & easy to maintain.
- › Compatible with firefighting control panels & PLCs.
- › High pressure handling for industrial & fire use.
