SHTPM Series
About SHTPM Series

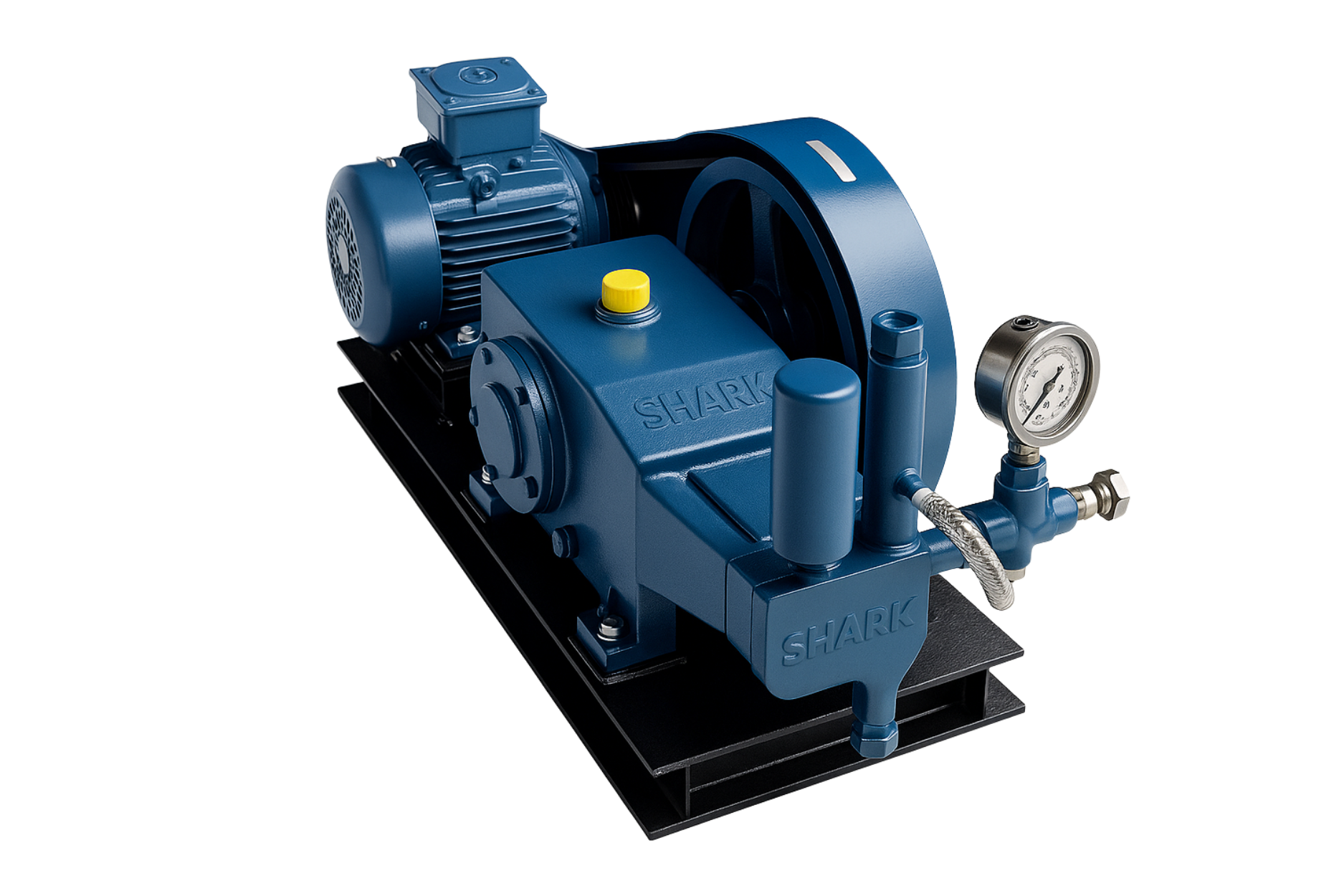

The SHTPM Series are Motorized Hydraulic Test Pumps manufactured by Shark Pump Engineering Pvt. Ltd.. These pumps generate high pressure for leakage and strength testing of boilers, pressure vessels, cylinders, pipelines, and industrial components — ensuring reliable and precise hydraulic testing.
Key Features
- › High pressure generation up to 700 kg/cm².
- › Compact, rugged design — suitable for both workshop and field use.
- › Motorized unit for consistent pressure with minimal effort.
- › Corrosion-resistant, long-lasting components.
- › Portable, easy to operate, and low maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 150 LPH |
| Discharge Size | 1/2" BSP |
| Plunger Size | 12 mm to 24 mm |
| Pressure | Up to 700 kg/cm² |
| Motor Power | Up to 3.7 kW / 5 HP |
Standard Accessories
- › Brass foot valve for reliable suction control.
- › G.M. / S.S. check valve for backflow prevention.
- › Brass pressure release cock for easy pressure adjustment.
- › Pressure hose with attachment.
- › Precision pressure gauge for accurate reading.
- › M.S. fabricated pail (Optional) for mounting.
Applications
- › Pressure testing of boilers, pressure vessels & pipelines.
- › Leak testing for gas cylinders and castings.
- › Testing C.I. mains, water lines & industrial pipelines.
- › Suitable for power plants, refineries, and engineering industries.
Advantages
- › Compact, portable, and easy to transport.
- › Reliable high-pressure testing up to 700 kg/cm².
- › Robust construction & low maintenance.
- › Compatible with multiple industrial test setups.
