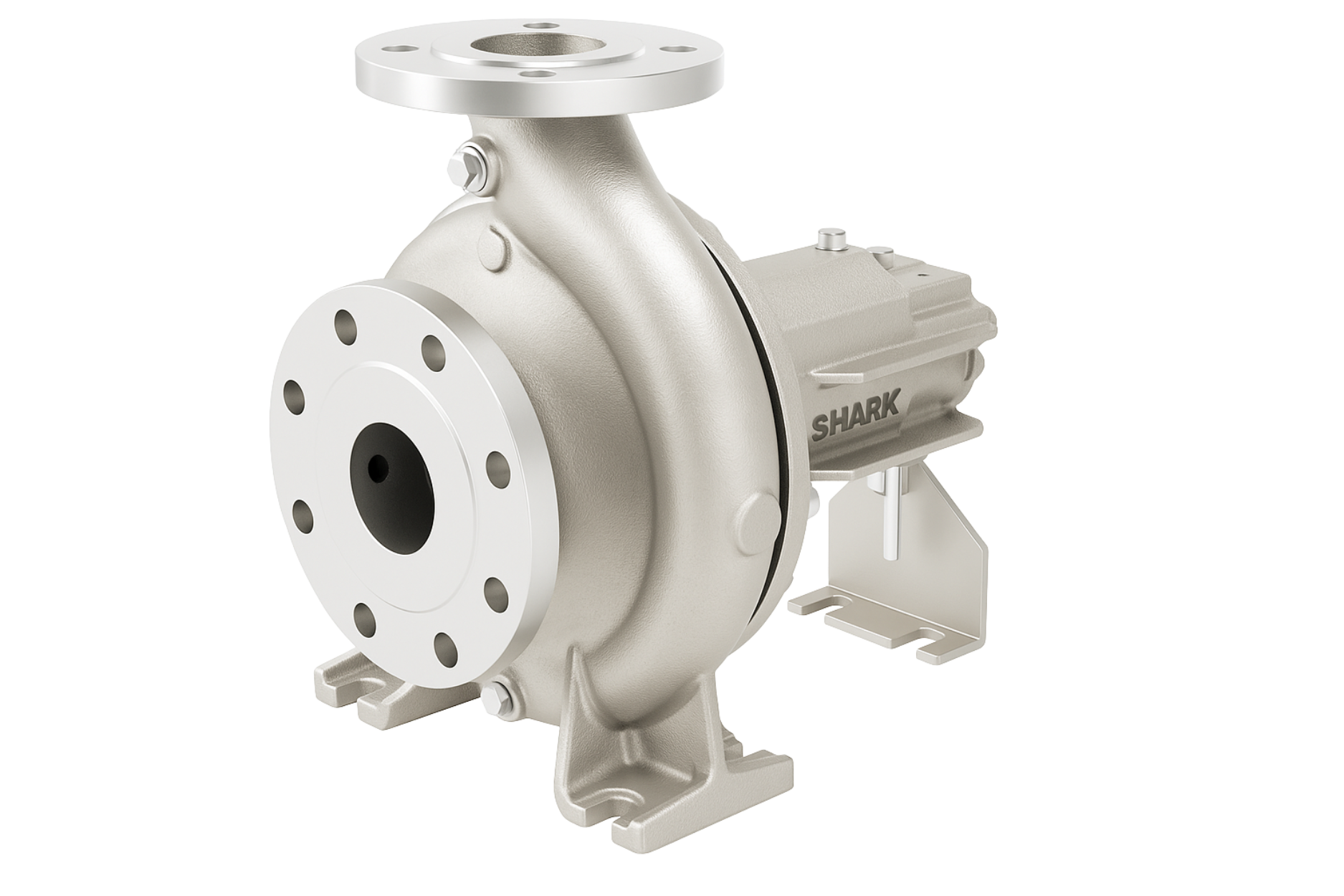

SHTFP Series
About SHTFP Series
The SHTFP Series are Centrifugal Air-Cooled Hot Oil Pumps manufactured by Shark Pump Engineering Pvt. Ltd.. These pumps are designed for hot oil & high-temperature fluid circulation, with an air-cooled layout that removes need for external cooling and ensures safe continuous operation.
Key Features
- › Horizontal, single-stage, single-suction volute centrifugal design.
- › Air-cooled system—no cooling water required.
- › Heavy-duty ball bearings for shaft support.
- › Closed impeller for efficient operation.
- › Heat-resistant mechanical seal fitted.
- › Axial suction flange & radial top discharge flange arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 180 m³/hr |
| Head | Up to 80 meters |
| Discharge Size | 32 mm to 80 mm |
| Temperature | Up to 350°C |
| Pressure | Up to 8 kg/cm² |
| Speed | Up to 3500 RPM |
| Cooling Method | Air Cooling (No External Cooling Required) |
| Material (M.O.C) | Grey Cast Iron, Cast Steel, Alloy Cast Steel |
Applications
- › Hot oil circulation in heat transfer systems.
- › Petrochemical & oil processing industries.
- › Synthetic fiber, plastic, rubber, textile industries.
- › Machinery manufacturing, food processing, medicine production.
- › Timber processing, sugar & paper mills; construction heating systems.
Advantages
- › External cooling not required — simplified installation.
- › Compact, energy-efficient design for continuous operation.
- › Long service life with minimal maintenance.
- › Safe handling of high-temperature fluids.
- › Easy accessibility for service and parts replacement.
