SHVMSP Series
About SHVMSP Series

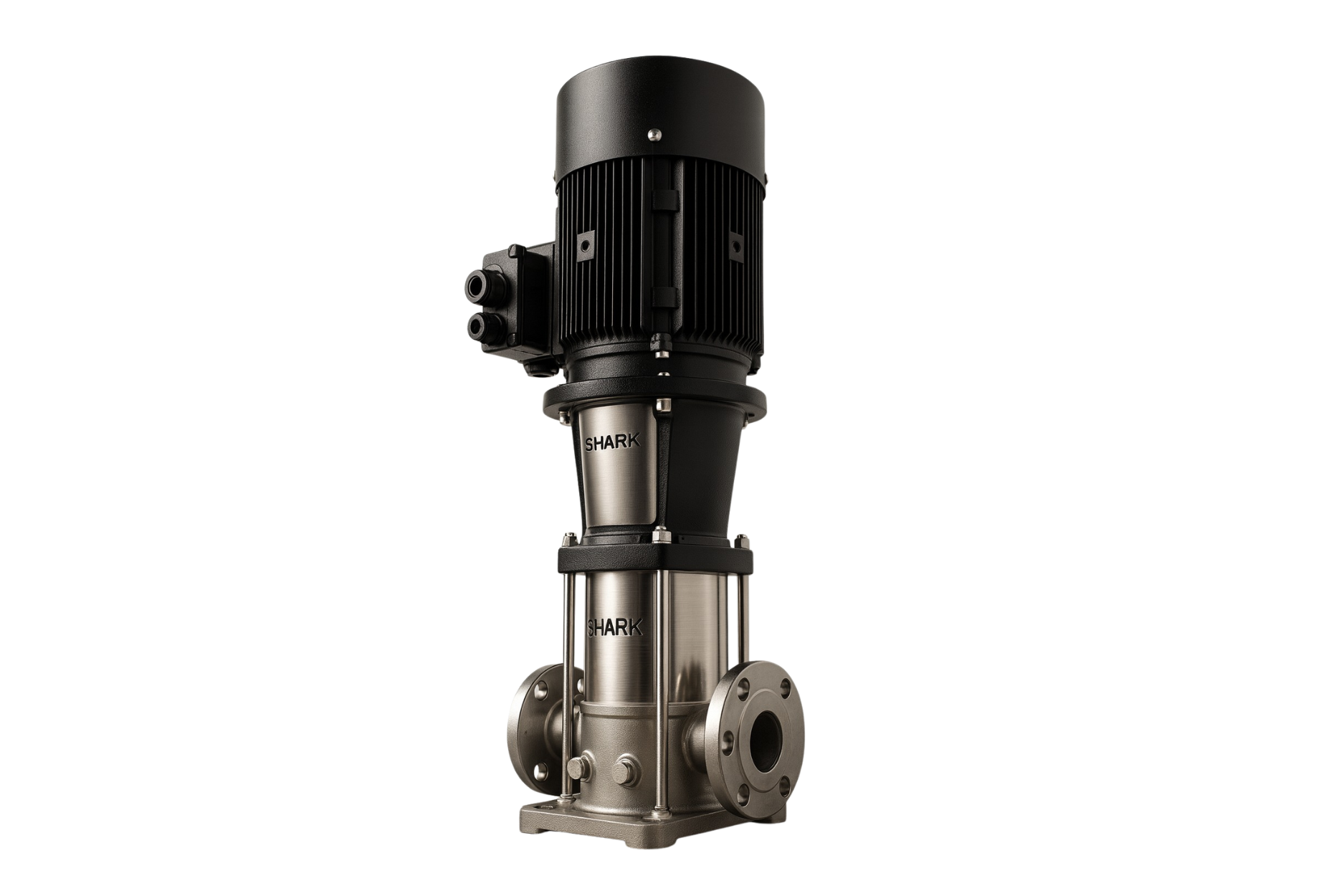

SHVMSP Series are Vertical Multistage Inline Centrifugal Pumps manufactured by Shark Pump Engineering Pvt. Ltd.. The vertical inline design allows the pump to be installed in a horizontal pipeline system where suction and discharge connections are in the same horizontal plane with identical pipe sizes. This compact design saves space and ensures easy installation and maintenance.
Construction & Design
- › Vertical multistage inline centrifugal pump construction
- › Multiple impellers mounted on a single shaft
- › Outer sleeve with tie bolts for rigid assembly
- › High-quality shaft seal arrangement
- › Pump head with flexible coupling
- › Compact base design for stable operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Pressure Range | 1 to 25 kg/cm² |
| Capacity | 1 to 160 m³/hr |
| Temperature | Maximum 120°C |
| Material Grade | C.I – SS STD, SS 316 |
Applications
- › High pressure boosting systems
- › Industrial water circulation systems
- › Boiler feed and condensate applications
- › HVAC circulation and pressure boosting
- › Process water handling
- › Fire fighting and utility water supply
Advantages
- › Space-saving inline installation
- › Same suction and discharge pipe size
- › High pressure generation using multistage impellers
- › Easy installation and maintenance
- › Reliable performance for continuous duty
