SHIC Series
About SHIC Series

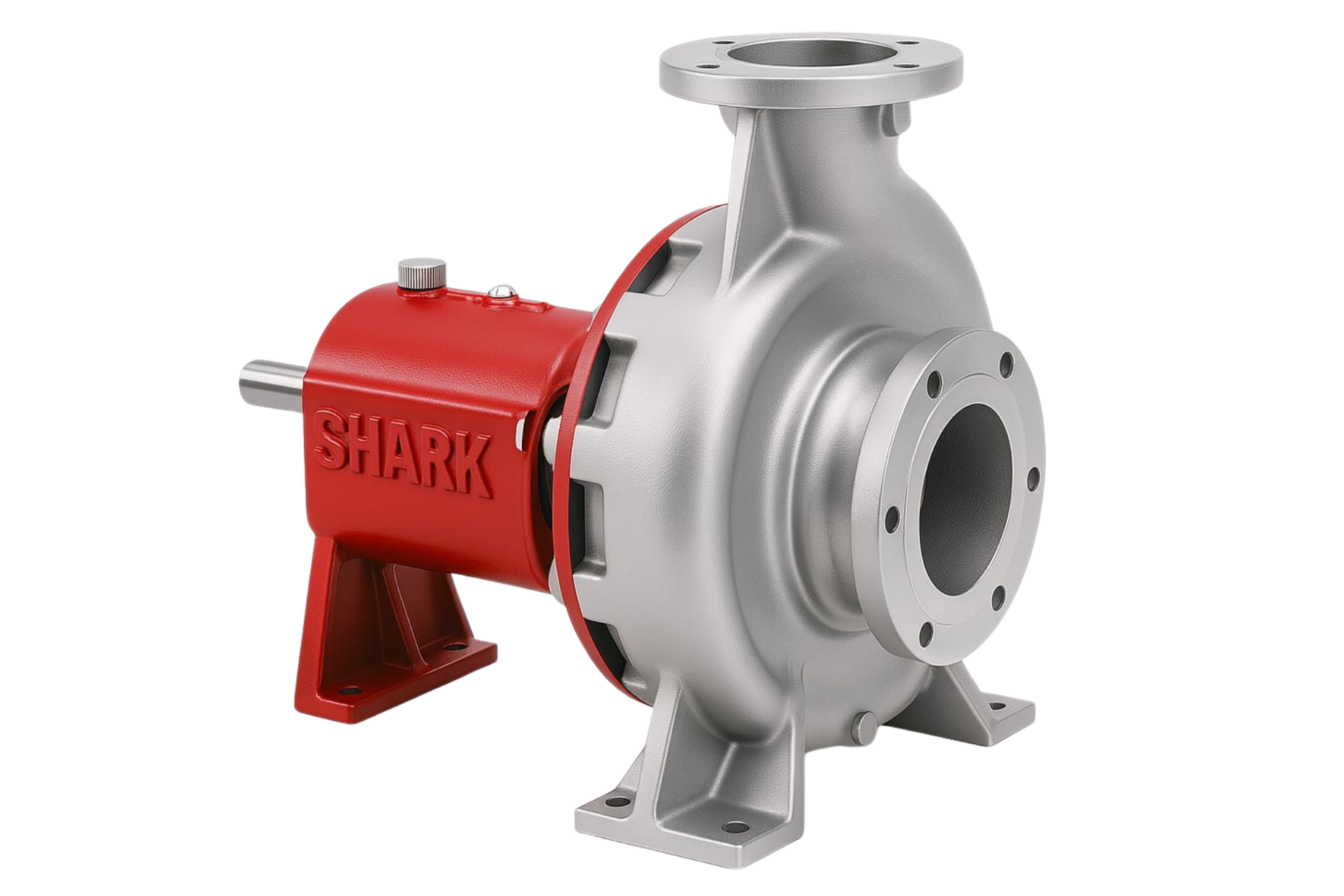

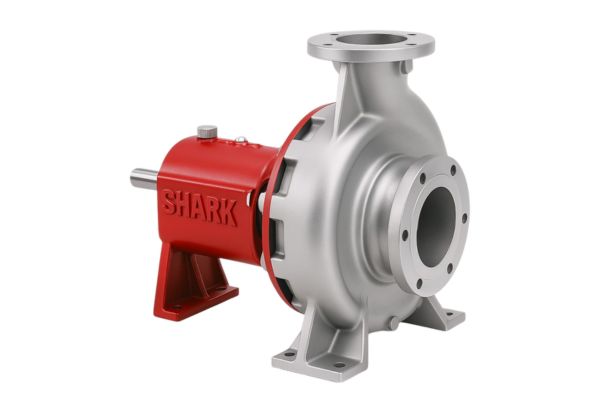

The SHIC Series are high-performance centrifugal process pumps manufactured in investment casting for superior surface finish and precision. Developed by Shark Pump Engineering Pvt. Ltd., these pumps are ideal for transferring corrosive, abrasive, or high-temperature liquids in various industrial applications including paper, sugar, and chemical processing plants.
Key Features
- › Manufactured using investment casting for precision and durability.
- › Suitable for corrosive, volatile, and high-temperature liquids.
- › Robust design with open/semi-open impeller for slurry and pulp transfer.
- › High efficiency with low maintenance operation.
- › Available in CI, SS, Bronze, Alloy-20, CD4MCU, Hast Alloy materials.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 350 m³/hr |
| Head | Up to 150 meters |
| Delivery Size | 25 mm to 100 mm |
| Temperature | Up to 250°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 15 kg/cm² |
| Material (M.O.C) | C.I, C.S, SS-304/304L, SS-316/316L, Bronze, Alloy-20, CD4MCU, Hast Alloy B & C |
Applications
- › Paper and pulp industries.
- › Food, sugar, and salt industries.
- › Organic and inorganic chemical transfer.
- › Effluent, caustic process, slurry, and filter press applications.
- › Pharmaceuticals, dyes, and kerosene solvent handling.
- › ETP, STP & wastewater treatment plants.
- › Cement and steel industries.
- › Public utility and civil engineering operations.
- › Hot and cold water circulation.
Advantages
- › Precise construction using investment casting technology.
- › Smooth flow characteristics with high hydraulic efficiency.
- › Long service life even in harsh chemical environments.
- › Reduced maintenance and energy consumption.
- › Excellent corrosion and wear resistance.
