SHCBFP Series
About SHCBFP Series

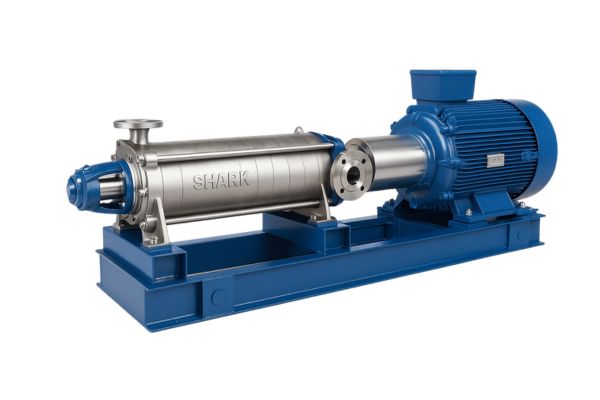

The SHCBFP Series are centrifugal high-pressure multi-stage pumps by Shark Pump Engineering Pvt. Ltd.. The multi-impeller design delivers excellent performance for high head applications such as fire fighting, boiler feed, condensate transfer, and high-rise water supply.
Key Features
- › Multi-stage construction — maximum head in compact footprint.
- › Precision impellers for efficient energy transfer.
- › Robust mechanical design for continuous duty.
- › Available in cast iron, bronze & steel M.O.C.
- › Best for clear water & non-corrosive fluids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 80 m³/hr |
| Head | Up to 300 meters |
| Discharge Size | 32 mm to 100 mm |
| Temperature | Up to 120°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 30 kg/cm² |
| Material (M.O.C) | Cast Iron, Bronze, Steel, etc. |
Applications
- › Condensate transfer, boiler feed & power plant water handling.
- › Fire-fighting systems & booster networks.
- › High-rise building water supply & sprinkler irrigation in hilly areas.
- › Mine dewatering, RO & high-pressure washing.
- › Circulation of hot/cooling water in process systems.
Advantages
- › Very high head from compact multi-stage design.
- › Efficient continuous-duty performance with low vibration.
- › Easy maintenance — replaceable wear parts.
- › Works for hot & cold water applications.
