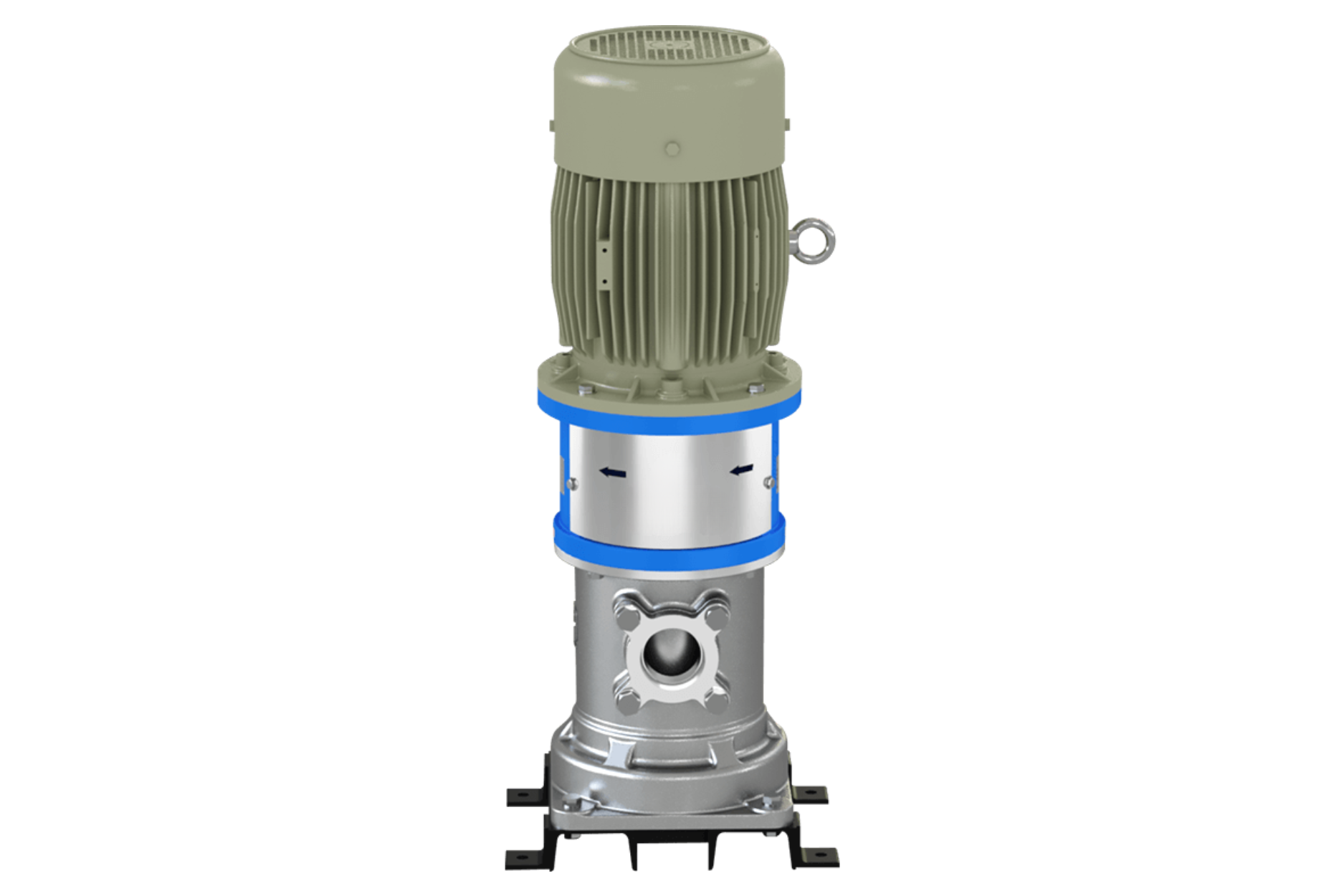

SHRCV Series
About SHRCV Series
The SHRCV Series are self-priming, lightweight pumps designed for safe and efficient transfer of volatile liquids. Inspired by industry proven MVSP design, SHRCV pumps feature an open impeller to eliminate axial thrust, specialised mechanical seal arrangements to reduce maintenance and a compact construction ideal for drum/barrel transfer and solvent handling applications. (Details referenced from MVSP product page). :contentReference[oaicite:1]{index=1}
Key Features
- › Self-priming construction — no foot valve required.
- › Open impeller design prevents axial thrust and improves reliability.
- › Specially designed mechanical seal for reduced downtime.
- › Lightweight and portable for drum / barrel loading-unloading.
- › Suitable for volatile / flammable liquids (construction dependent).
- › Available in multiple materials and seal options on request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 21 m³/hr |
| Head | Up to 35 m |
| Temperature | Up to +75 °C |
| Speed | Up to 1400 RPM |
| Impeller | Open impeller (axial thrust minimised) |
| Sealing | Special mechanical seal (low maintenance) |
| Typical Uses | Drum & barrel transfer, solvents, paints, laminates, petroleum products |
Applications
- › Chemical industry — solvent & volatile liquid transfer.
- › Pharma solvent handling and petroleum product transfer.
- › Paints, laminates and coatings industries.
- › Drum & barrel loading / unloading operations.
- › Any process requiring compact self-priming pump for volatile liquids.
Advantages
- › Reduced installation complexity — no foot valve required.
- › Lower maintenance thanks to mechanical seal design.
- › Compact, portable and easy to handle.
- › Minimized axial thrust improves bearing life.
- › Designed for safe handling of volatile process fluids.
