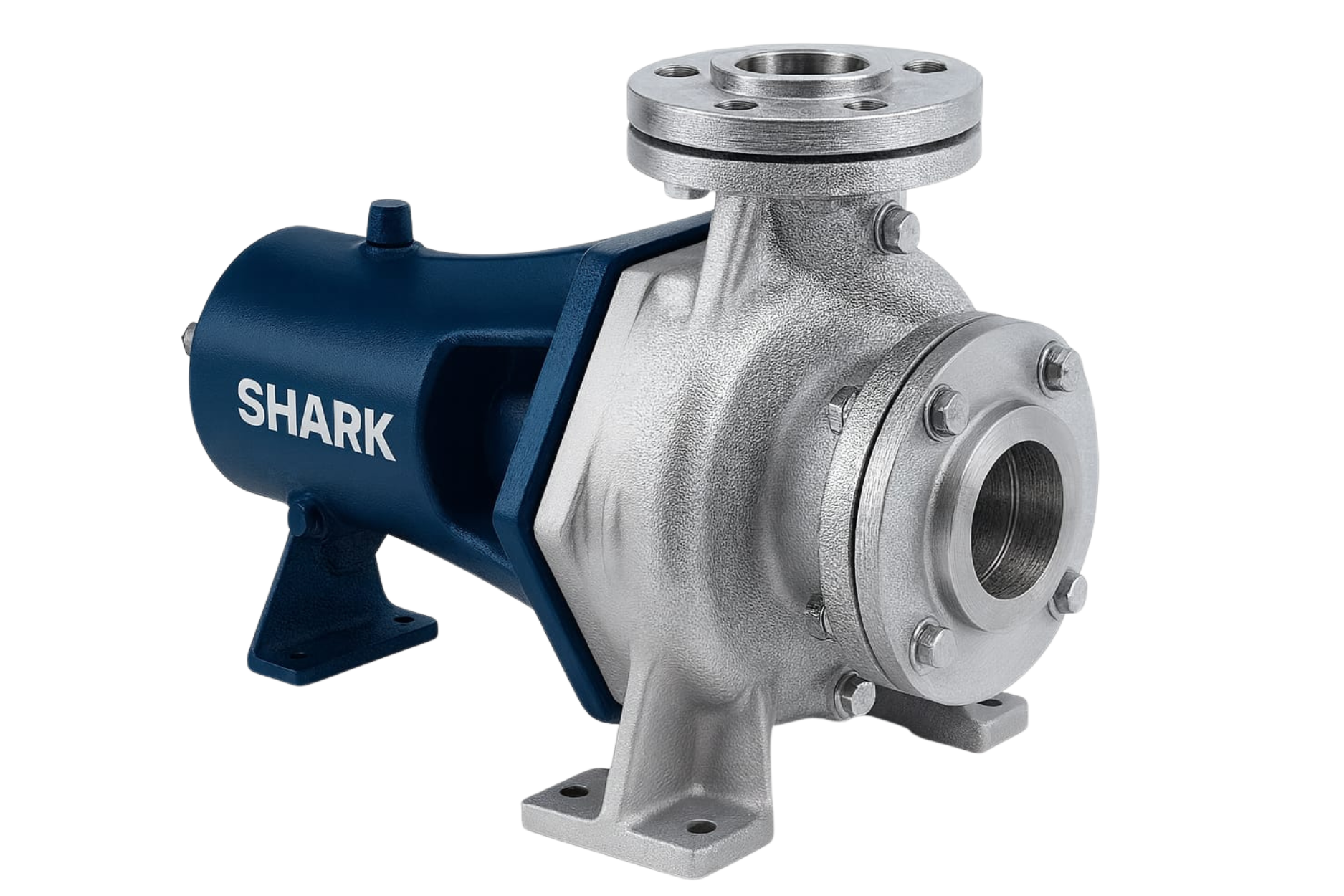

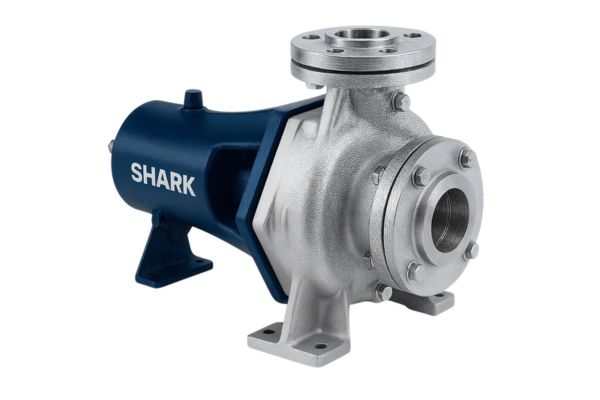

SHCP Series
About SHCP Series
The SHCP Series are end suction, horizontal, centrifugal coupled pumps with semi-open impeller, designed for reliable performance and long life by Shark Pump Engineering Pvt. Ltd.. These pumps are widely used for various industrial and chemical applications, handling corrosive and volatile liquids with excellent efficiency and smooth operation.
Key Features
- › Horizontal, end suction, centrifugal coupled design.
- › Semi-open impeller for handling slurries and viscous fluids.
- › Available in C.I., S.S., Bronze, Alloy-20, CD4MCU, and Hast Alloy construction.
- › Compact and maintenance-friendly design.
- › Suitable for wide range of industrial chemical processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 40 m³/hr |
| Head | Up to 48 meters |
| Discharge Size | 25 mm to 50 mm |
| Temperature | Up to 250°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 4.8 kg/cm² |
| Material (M.O.C) | C.I, C.S, SS-304 / SS-316 / SS-316L, Bronze, Alloy-20, CD4MCU, Hast Alloy B & C |
Applications
- › Organic/Inorganic chemicals, volatile liquids, corrosive chemicals, caustic, process, effluent, filter press, slurry applications.
- › Pharmaceutical, dyes, textiles, kerosene, diesel, and solvent applications.
- › ETP, STP & wastewater treatment plants, fertilizers, cement, and steel industries.
- › For pumping chemicals with solids in suspension and polluted liquids.
- › Widely used for public and civil engineering works.
- › Paper and pulp industries for process water and slurries.
Advantages
- › Compact and user-friendly maintenance.
- › High hydraulic efficiency and low power consumption.
- › Noiseless and vibration-free operation.
- › Ideal for both clear and slurry liquid applications.
- › Available in wide range of MOC for compatibility with various fluids.
