Welcome to Shark Pump Engineering Pvt. Ltd.
About Shark Pumps
Shark Pump Engineering Pvt. Ltd., an ISO 9001:2008 certified company from Ahmedabad, manufactures high-performance industrial pumps with a focus on reliability, efficiency, and quality.
Get a Free Inquiry

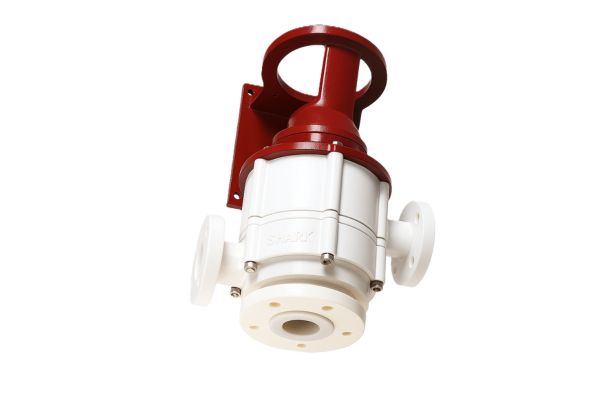

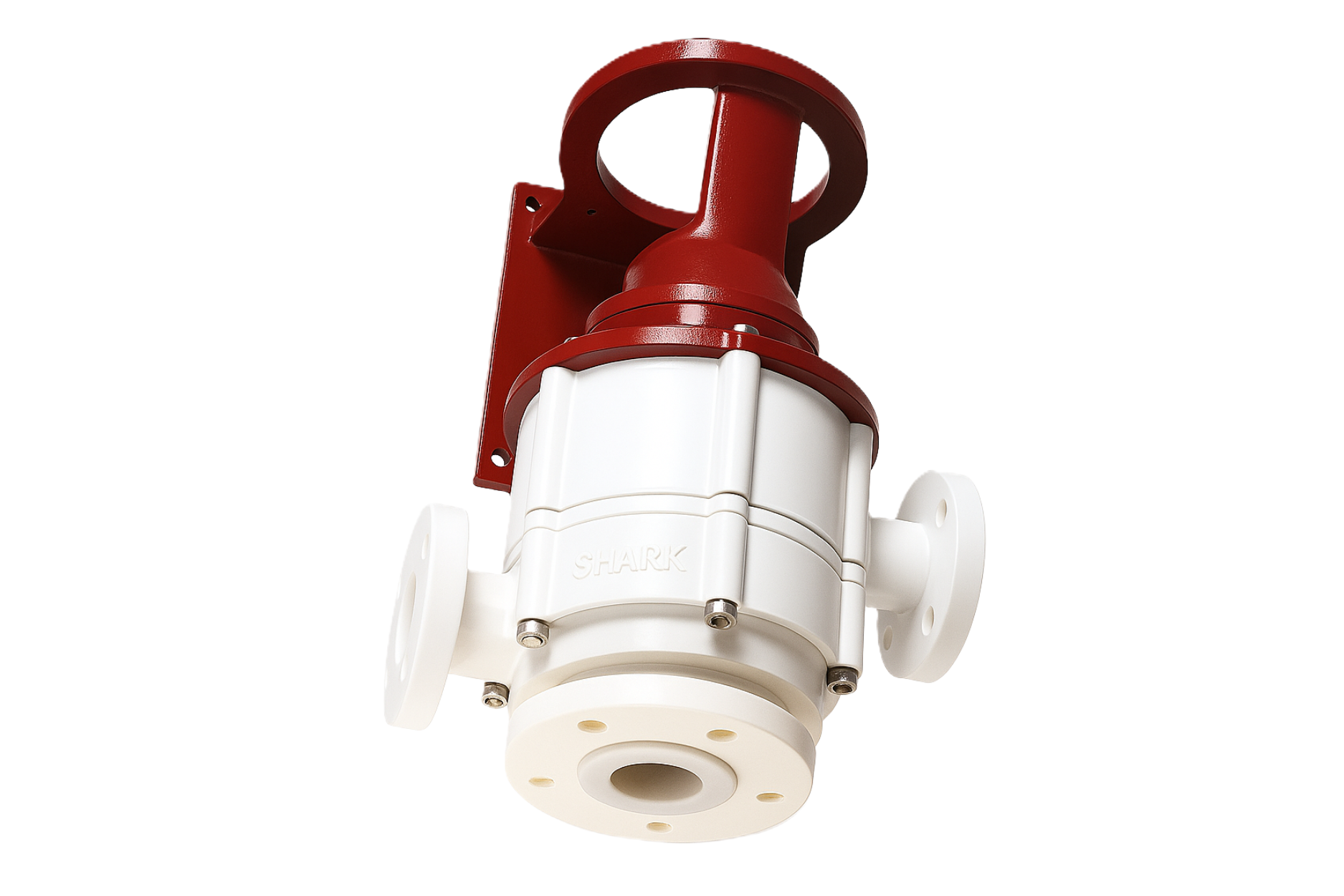

SHVPP Series
About SHVPP Series
The SHVPP Series are high-efficiency Vertical Seal-less Pumps designed by Shark Pump Engineering Pvt. Ltd.. These pumps provide leakage-free, low-maintenance operation and can tolerate short dry-running periods — ideal for effluent, chemical transfer and corrosive applications.
Key Features
- › Vertical, seal-less design eliminates leakage and seal wear.
- › Can run dry for short periods without damage.
- › Compact design with fewer components for easy maintenance.
- › Made from corrosion-resistant PP and UHMWPE materials.
- › Ideal for highly corrosive and chemical transfer applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 50 m³/hr |
| Head | Up to 45 meters |
| Delivery Size | 25 mm to 50 mm |
| Temperature | Up to 80°C |
| Speed | Up to 3500 RPM |
| Pressure | Up to 4.5 kg/cm² |
| Material (M.O.C) | PP, UHMWPE |
Applications
- › Effluent treatment plants (no seals/glands required).
- › Water & wastewater treatment plants.
- › Electroplating, pickling & steel rolling mills.
- › Transfer of corrosive liquids (HCl, sulphuric acid, caustic).
- › Scrubbing of corrosive gases (NH3, CO2, SO3, Br2, Cl2).
- › Chemical circulation in textile, paper, sugar, steel & food industries.
- › High-capacity transfer for dyes, chemicals, oil and descaling operations.
Advantages
- › Seal-less design ensures zero leakage and low maintenance.
- › Short dry-run tolerance without damage.
- › Excellent corrosion resistance (PP/UHMWPE).
- › Space-saving vertical layout for compact installations.
- › Reliable, durable and cost-effective for chemical industries.
