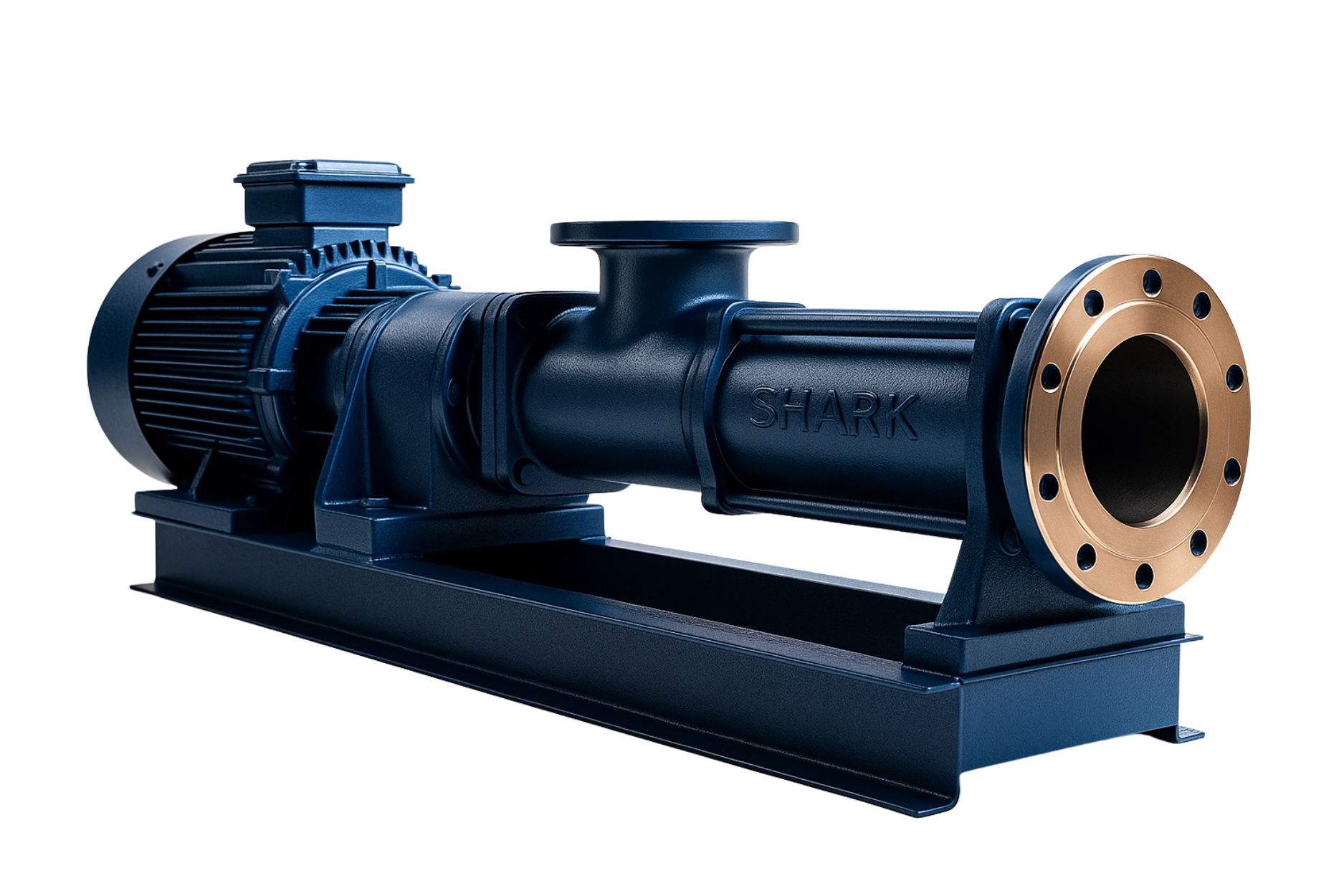

SHPCP Series
About SHPCP Series
The SHPCP Series are Progressive Cavity Screw Pumps developed by Shark Pump Engineering Pvt. Ltd.. These pumps are ideal for viscous, abrasive and shear-sensitive materials — the precise rotor-stator design delivers uniform, pulsation-free flow, making them suitable for industrial, chemical and food-grade applications.
Key Features
- › Positive displacement design ensures consistent flow at variable pressures.
- › Handles viscous, abrasive, and solid-laden liquids.
- › Smooth, pulsation-free discharge — gentle on shear-sensitive products.
- › Wide range of M.O.C. for industrial and hygienic needs.
- › Easy maintenance with replaceable rotor and stator parts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | Up to 150 m³/hr |
| Discharge Size | 25 mm to 150 mm |
| Temperature | Up to 120°C |
| Pressure | Up to 30 kg/cm² |
| Speed | Up to 600 RPM |
| Viscosity | Up to 100,000 CST |
| Solid Handling | Up to 25 mm |
| Material (M.O.C) | C.I., WCB, SS-304/316/316L, Alloy-20, Bronze, CD4MCU, SS410, Tool Steel |
| Stator Material | Natural, Nitrile, Neoprene, EPDM, Hypalon, Viton, Food Grade & Special Rubber |
Applications
- › Effluent & wastewater treatment plants.
- › Pulp & paper industries.
- › Sugar, distilleries (syrup & molasses transfer).
- › Chemical & petrochemical viscous media handling.
- › Food, starch & beverage processing.
- › Cosmetics, medicines, ointments manufacturing.
- › Paints, resins, mining & slurry handling.
Advantages
- › Efficient handling of viscous and abrasive media.
- › Uniform discharge without pulsation or turbulence.
- › Self-priming capability & excellent suction lift.
- › Simple construction — easy maintenance & part replacement.
- › Suitable for hygienic / food-grade applications.
