SHHP Series
About SHHP Series

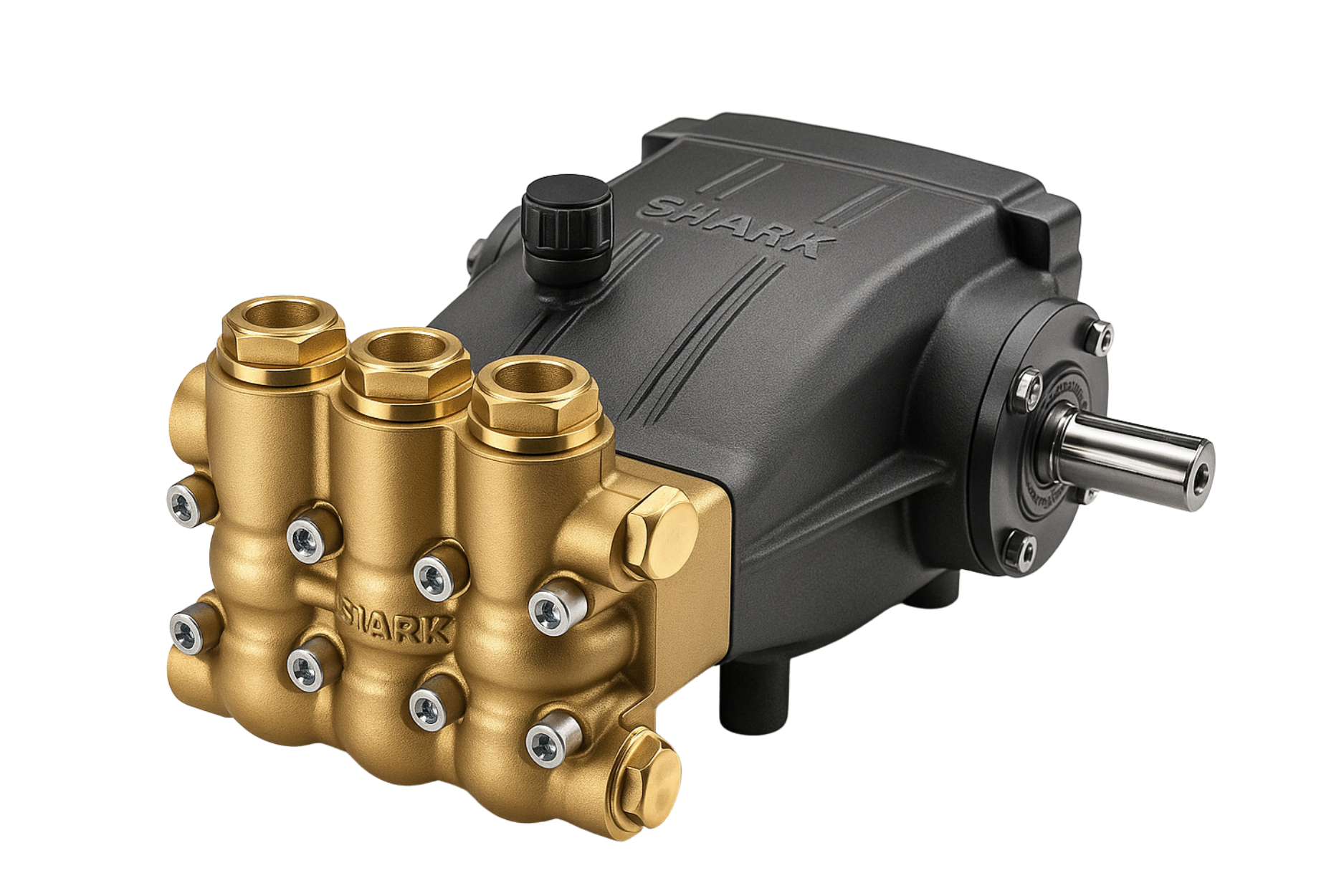

SHHP Series – High Pressure Plunger Pumps from Shark Pump Engineering Pvt. Ltd. are designed for high-pressure industrial and commercial applications. These pumps are optimized for long service life, low maintenance, and energy-efficient operation.
Design Features
- › Plunger Head: Forged Brass
- › Plungers: Ceramic
- › Main Body: Aluminum Die Cast
- › Connecting Rod: Aluminum Die Cast
- › Crank Shaft: Alloy Steel
- › Plunger Seal: Buna “N” Seal
- › Valve Assembly: SS 304
- › Recommended Oil: 15W40
Technical Specifications
| Pump Model | Min. LPM | Max. LPM | Min. Pressure (Bar) | Max. Pressure (Bar) | Max. Power (HP) |
|---|---|---|---|---|---|
| NHD | 8.5 | 14 | 60 | 150 | 5 |
| NPM | 15 | 18 | 120 | 250 | 10 |
| NMT | 18 | 21 | 150 | 200 | 15 |
| NLT | 25 | 30 | 120 | 250 | 10 |
| PXI | 11 | 30 | 250 | 500 | 40 |
| XLT | 18 | 55 | 100 | 250 | 25 |
| XXT | 42 | 70 | 120 | 200 | 30 |
Salient Features
- › High service life due to appropriate pump speed.
- › Top open power frame design for easy maintenance.
- › Compact construction and reliable pressure control.
- › Ideal for high-pressure applications and hydraulic testing.
- › Smooth, vibration-free operation with durable components.
Applications
- › Hydraulic pressure testing systems.
- › Industrial cleaning & jet washing systems.
- › Boiler feed and water injection applications.
- › RO & filtration plants.
- › Firefighting & spray systems.
