Welcome to Shark Pump Engineering Pvt. Ltd.
About Shark Pumps
Shark Pump Engineering Pvt. Ltd., an ISO 9001:2008 certified company from Ahmedabad, manufactures high-performance industrial pumps with a focus on reliability, efficiency, and quality.
Get a Free Inquiry
Multistage Single Outlet

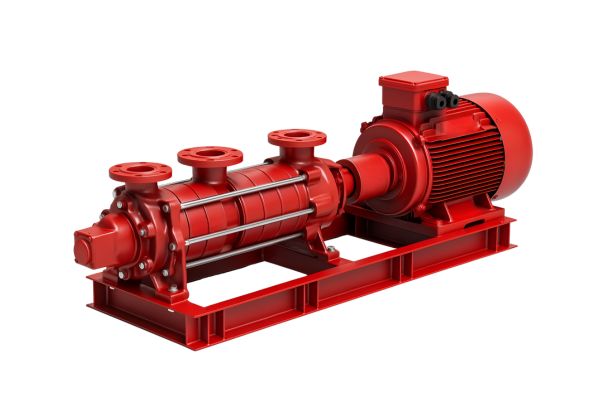

About Multistage Motor & Engine Driven Sets
Multistage Single Outlet / Multi Outlet Motor & Engine Driven Sets by Shark Pump Engineering Pvt. Ltd. are high-performance pumping systems engineered for high head and consistent discharge. Available with both electric motor and diesel engine drives to suit diverse industrial requirements.
Pump Type Options
- › Multistage Single Outlet – for very high head discharge.
- › Multistage Multi Outlet – for distribution & multi-branch systems.
Drive Type Options
- › Electric Motor Drive – fixed industrial installations.
- › Radiator Cooled Diesel Engine (12V / 24V) – portable & reliable.
- › Heat Exchanger Cooled Diesel Engine (12V / 24V) – marine / continuous duty.
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Range | Up to 1000 m³/hr |
| Head Range | Up to 1500 meters |
| Temperature | Up to 160°C |
| Drive Type | Electric Motor / Radiator or Heat Exchanger Cooled Diesel Engine |
| Voltage (Motor) | 415 V, 50 Hz |
| Engine Voltage | 12V / 24V |
| Pump Type | Multistage Single / Multi Outlet |
Optional Accessories (on Request)
- › Control Panel with auto start & protection.
- › Battery set for engine starting.
- › Heavy-duty battery cables.
- › Diesel fuel tank (custom capacity).
Applications
- › Industrial & municipal water supply.
- › High-rise building pressure boosting.
- › Fire-fighting & sprinkler systems.
- › Boiler feed & condensate transfer.
- › Irrigation and rural water distribution.
- › Power plants & process industries needing high head.
Advantages
- › Dual-drive flexibility: motor or engine per site need.
- › Designed for very high head & multi-outlet use.
- › High hydraulic efficiency with low energy use.
- › Rugged construction for continuous heavy-duty performance.
- › Suitable for both stationary & portable operations.
